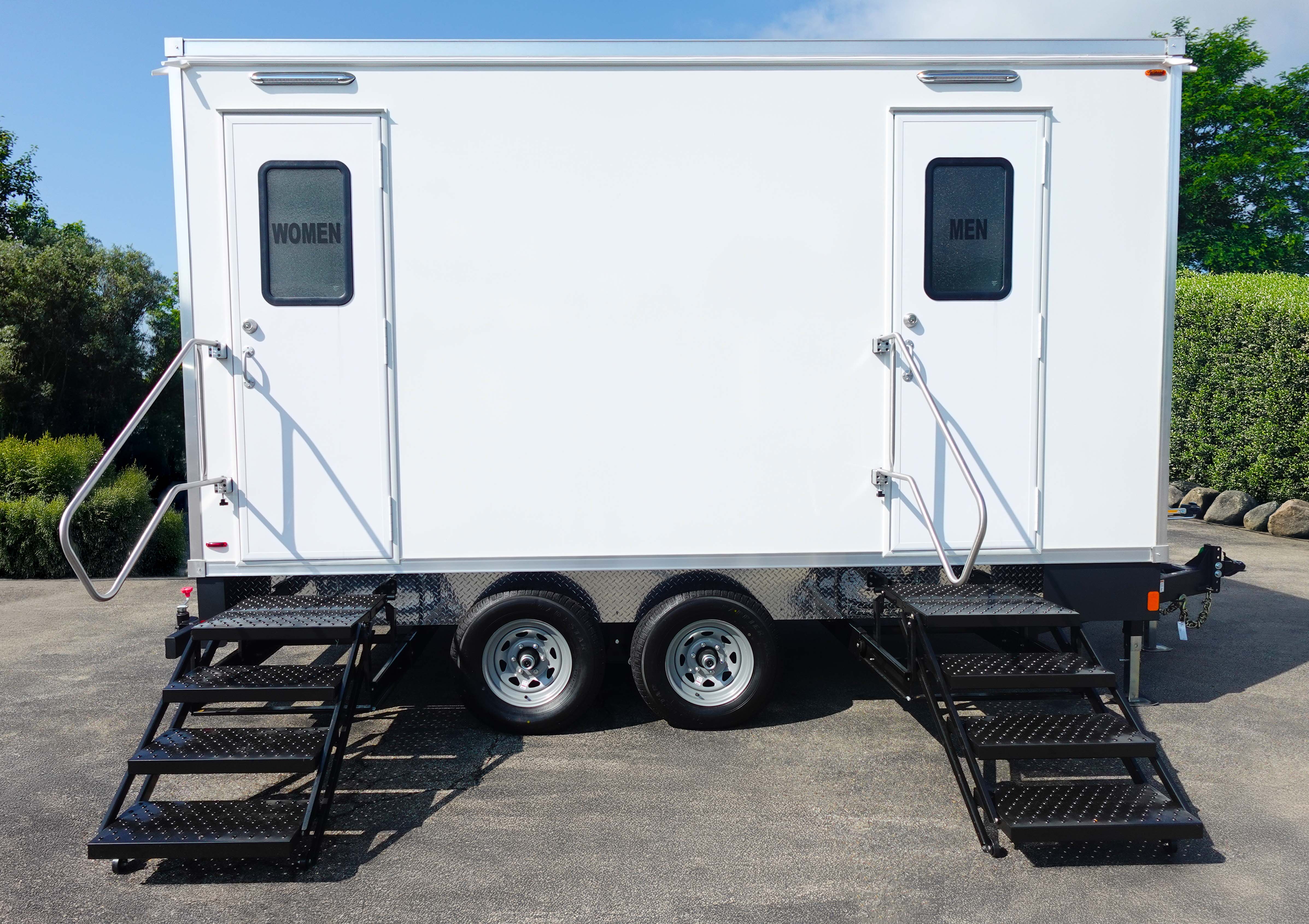

5 Station Restroom Trailer - Pro Series

Description

Our Pro series 5 station restroom trailer is by far our most popular restroom trailer.  Its compact size while still offering 5 stations makes it small enough to fit into small event spaces but it still has the capacity to handle larger crowds. We recommend using this size trailer for events with 300 people or less.

Standard Features:

Chassis:
  • Steel frame
  • 2-5/16" coupler with 7,000 lb toungue jack
  • Dual 5,000 lb axles w/ electric brakes
  • 15" radial tire with 6 hole steel wheels
  • 7,000 lb front stabilizing drop jacks
  • 5,000 lb rear stabilizing swivel jacks
Exterior:
  • 26" entry doors, with frosted glass windows
  • 36" mechanical room door
  • 24" self leveling slide out stairs with platform and railings
  • Diamond plate trim

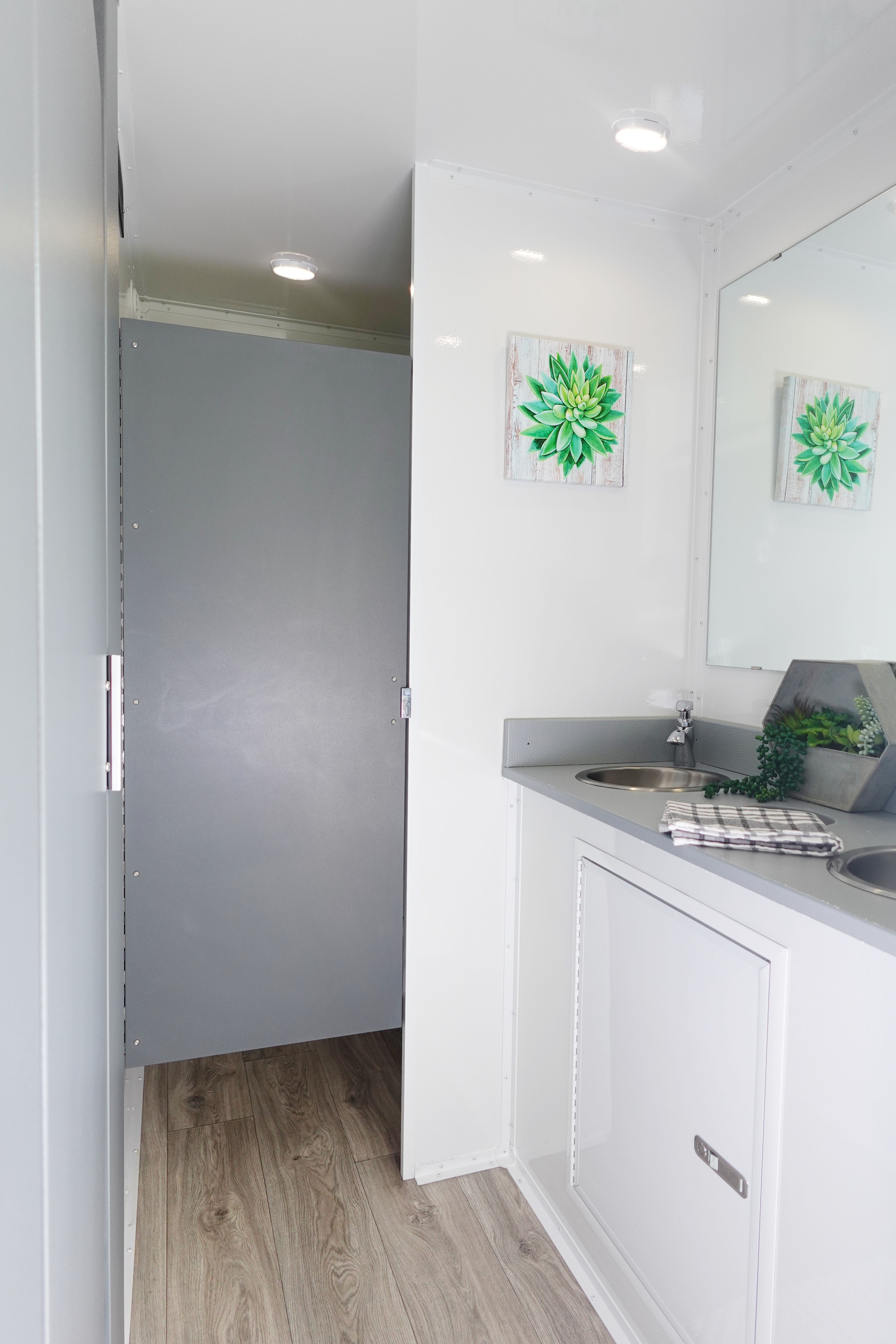

Interior:
  • One piece vinyl flooring - Dove Tail
  • Seamless gel-coated fiberglass walls, ceiling, and subfloor
  • Aluminum trim - White
  • Oversized mirrors
  • Custom HDPE vanities
  • Travel locks on all doors and vanities
  • 1" thick HDPE stall doors and dividers
  • Toilet paper dispensers (double roll)
  • Paper towel dispensers - stainless
Plumbing:

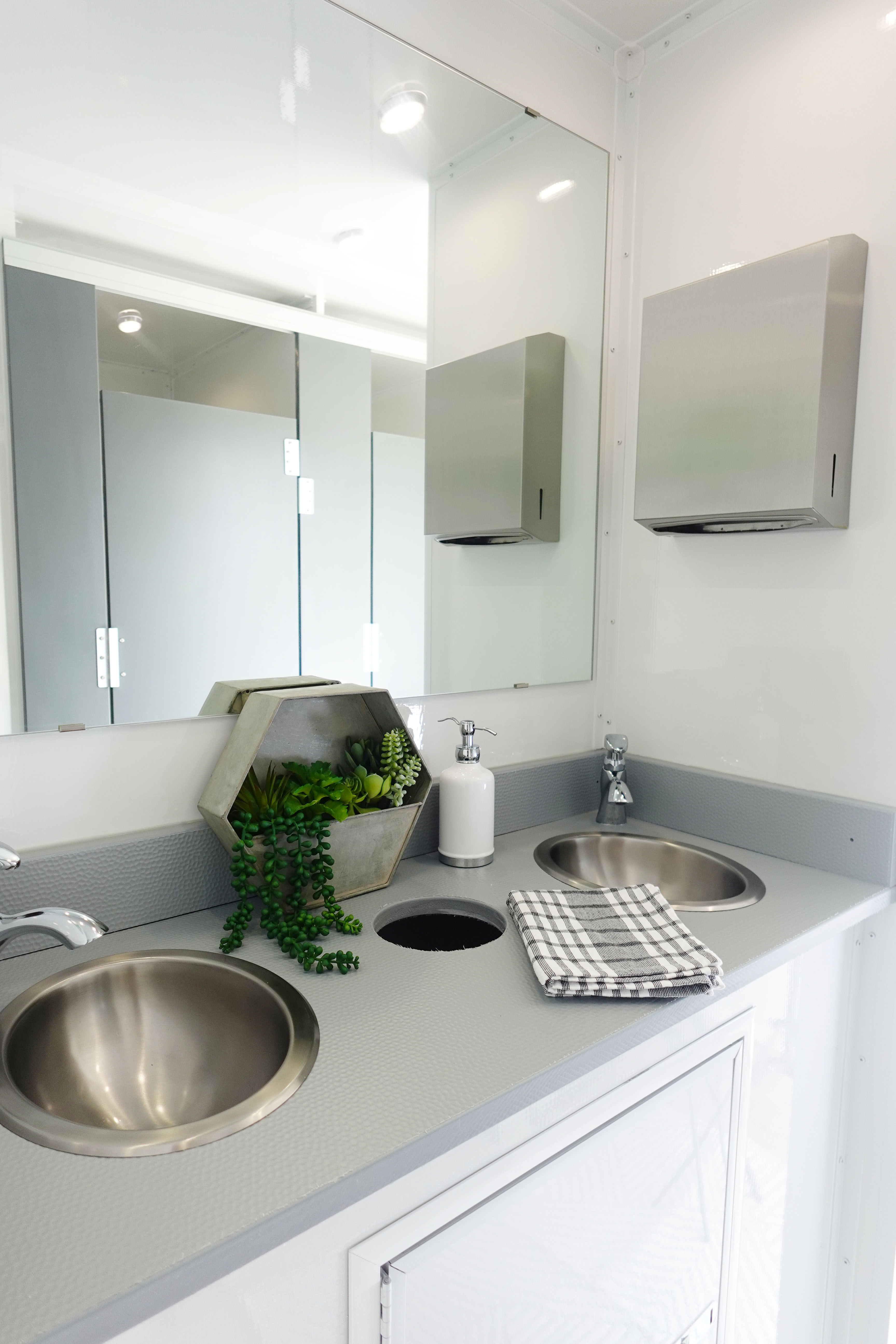

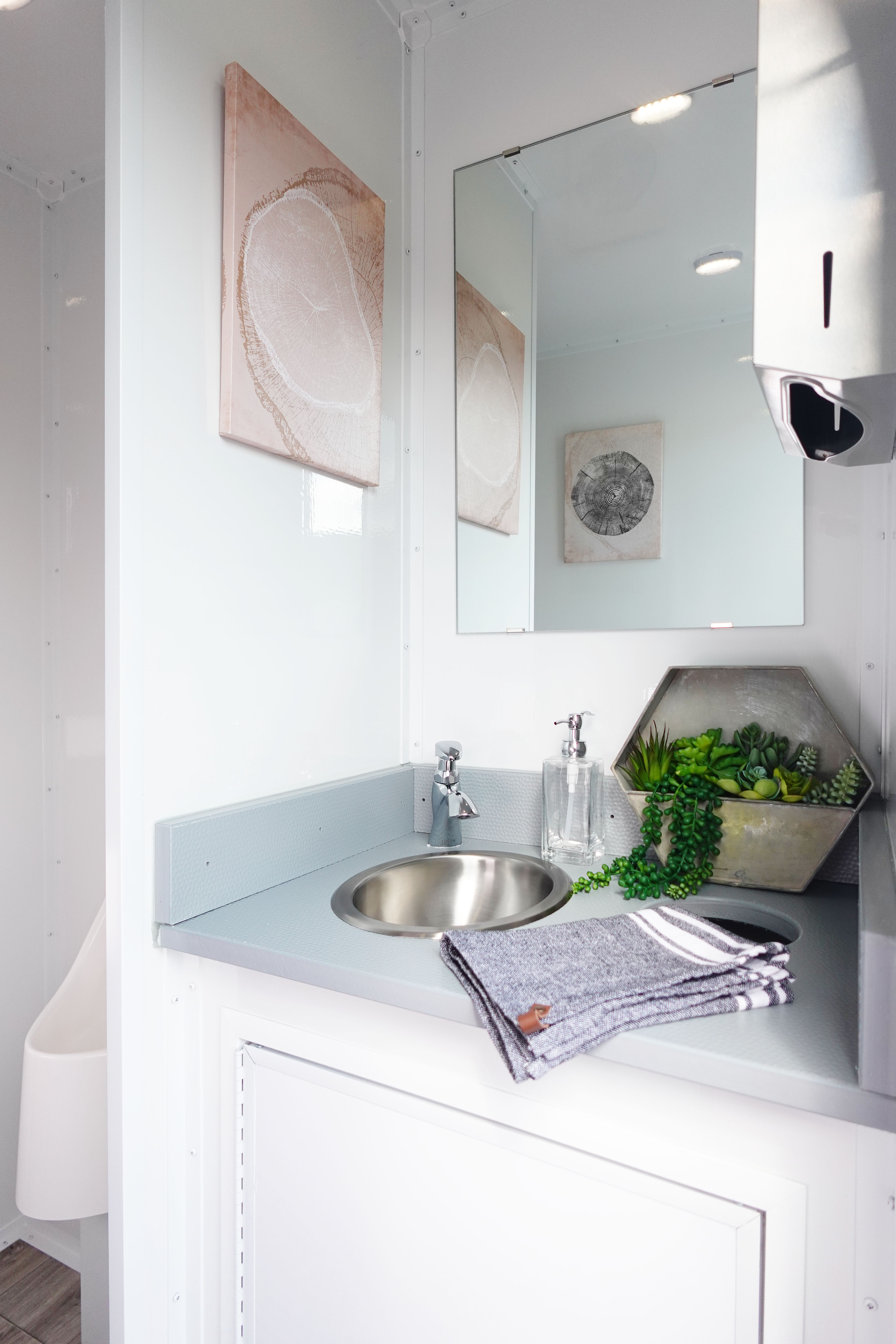

  • Stainless steel sinks
  • Delta metered faucets
  • Dometic 310 white china toilets with foot flush

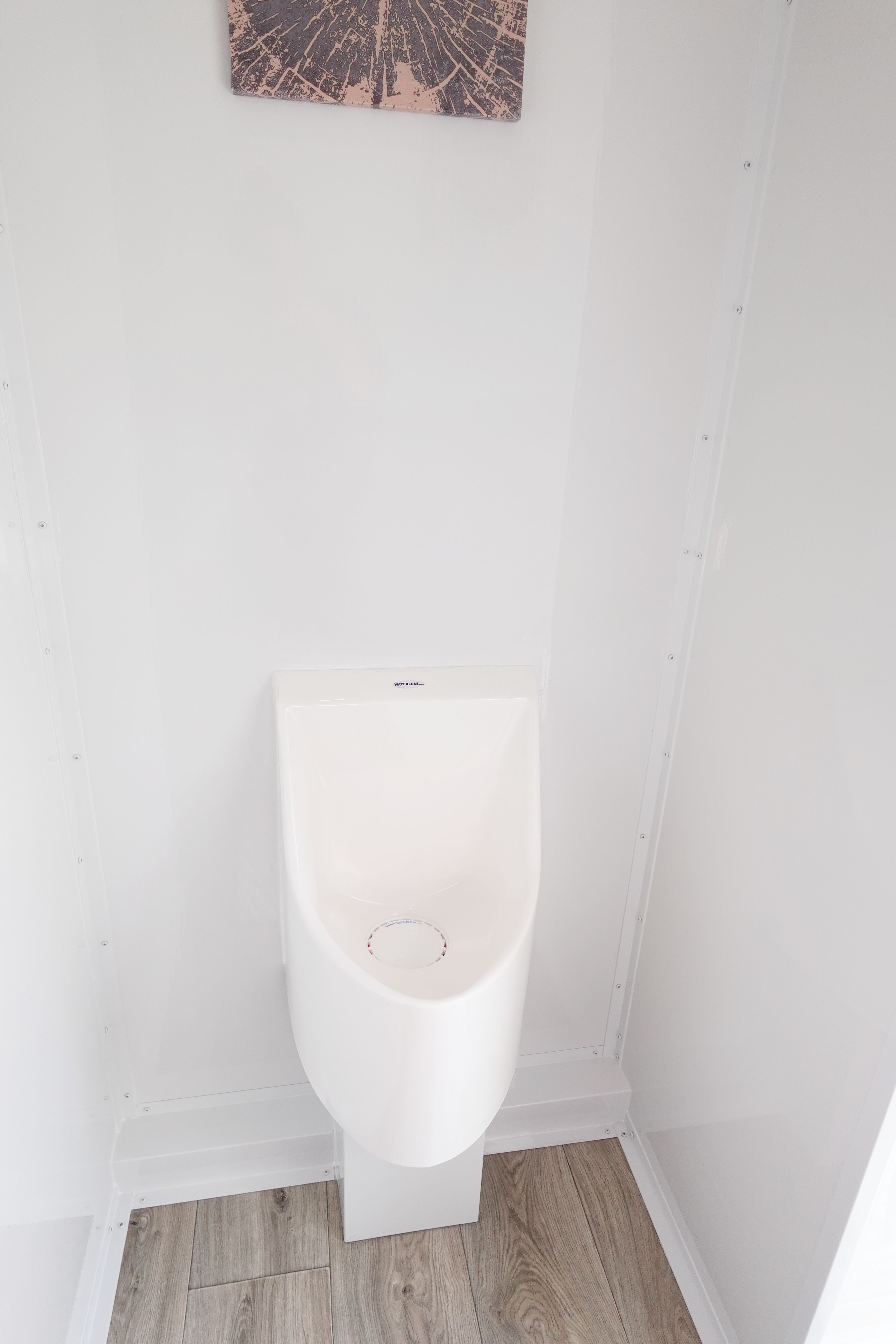

  • Urinal, waterless, white
  • City water fill, 3/4" garden hose connection
  • All toilets and sinks individualy valved
  • 520 (aprox) gallon 1/2" Co-Poly waste tank
  • Spray bar waste tank clean out
  • Dumb valve 3" with quick connect
Electrical & HVAC:
  • 13,500 BTU A/C with insulated ducts and registers
  • 5,000 BTU heat strip
  • Smart touch digital thermostat
  • Full size deep cycle battery with case & battery disconnect
  • LED exterior entrance lights
  • LED interior lighting package
  • 15’- 12 gauge power cord with 20 amp plug
  • Tech edge waste tank monitoring system
Additional options available:
  • 200 gallon fresh water package
  • Three season package
  • Winter package
  • Bluetooth AM / FM stereo
  • Mobile monitoring
  • Aluminum wheels

Specifications

No. of stations Womens - 3, Mens - 2
Box Size 14'6" x 101"
Weight 6,900 lbs (will vary based on features)
Weight (Axle) Dual 5,000 lb.
Length w/ tongue 19'10"
Width w/ Stairs 12'4"
Height w/ AC 11'7"
Fresh Water Tank 200 Gallons (option)
Waste Tank 520 Gallons
Power Requirements One dedicated 120 Volt-20 amp circuit (will vary based on features)
No. of AC Units 1
